100' PREMIUM HOSE REEL KIT-100 NO MARK GREY
$484.26
SKU: 43.5034
Couldn't load pickup availability
Loading...
SKU: 43.5034
Couldn't load pickup availability

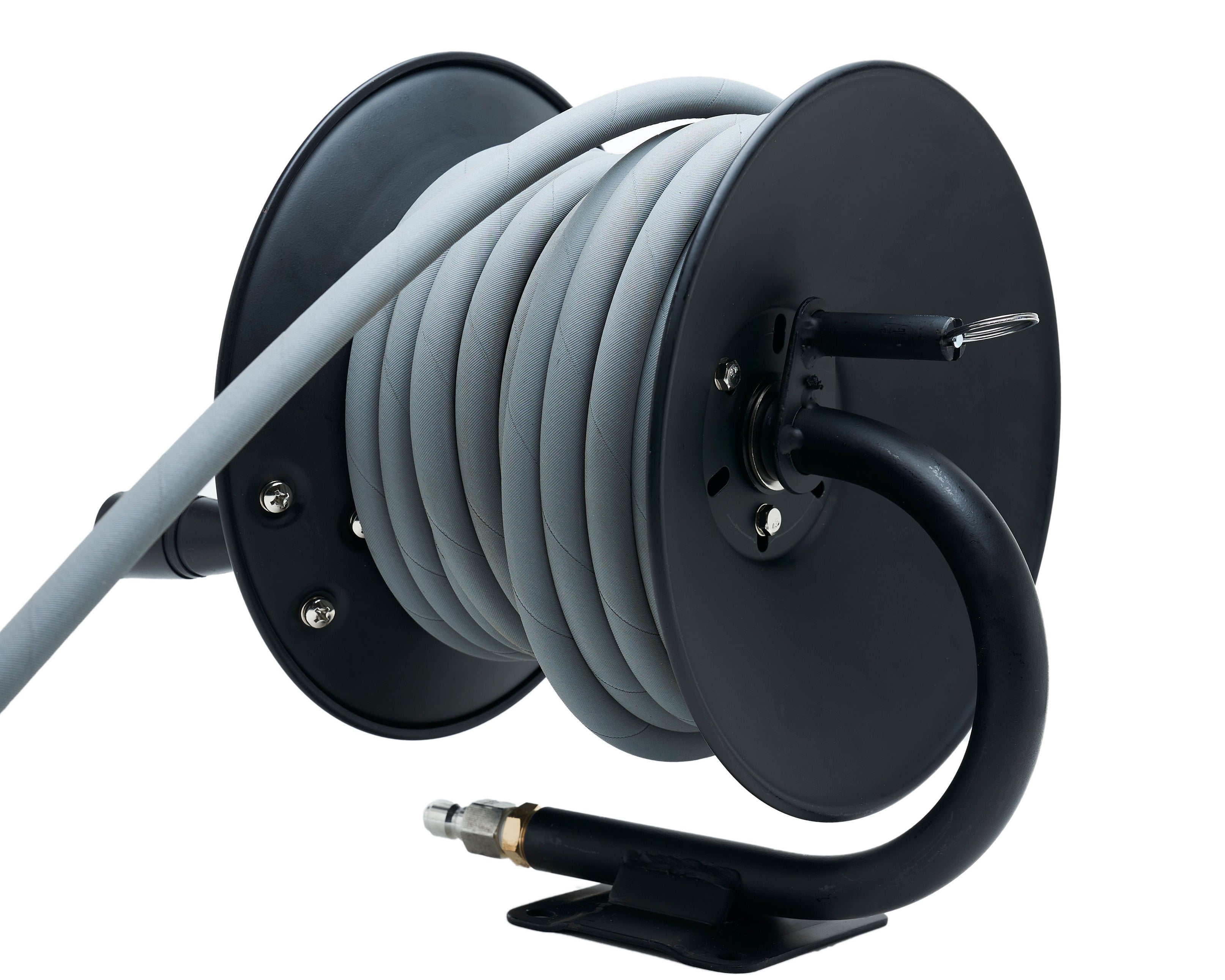

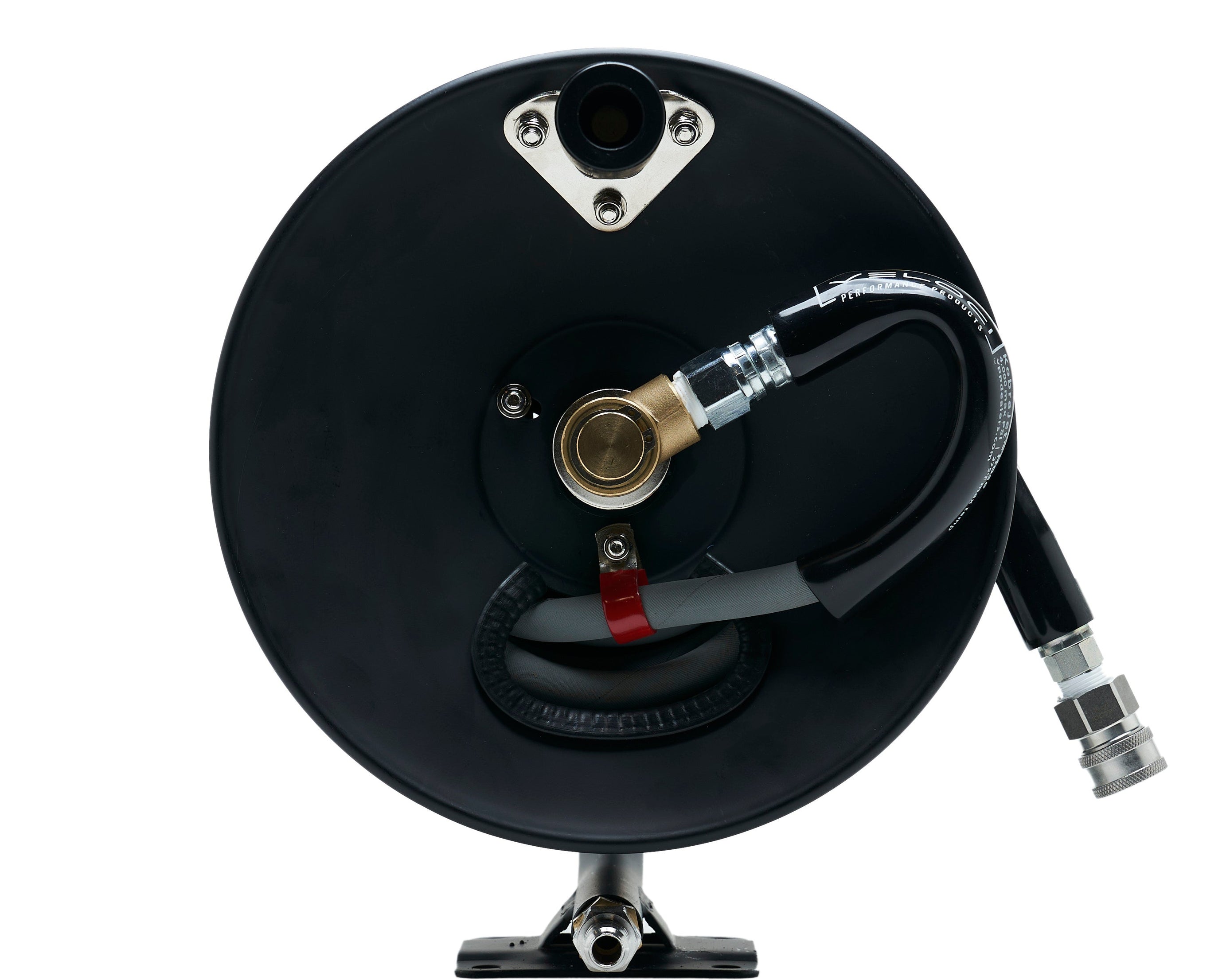

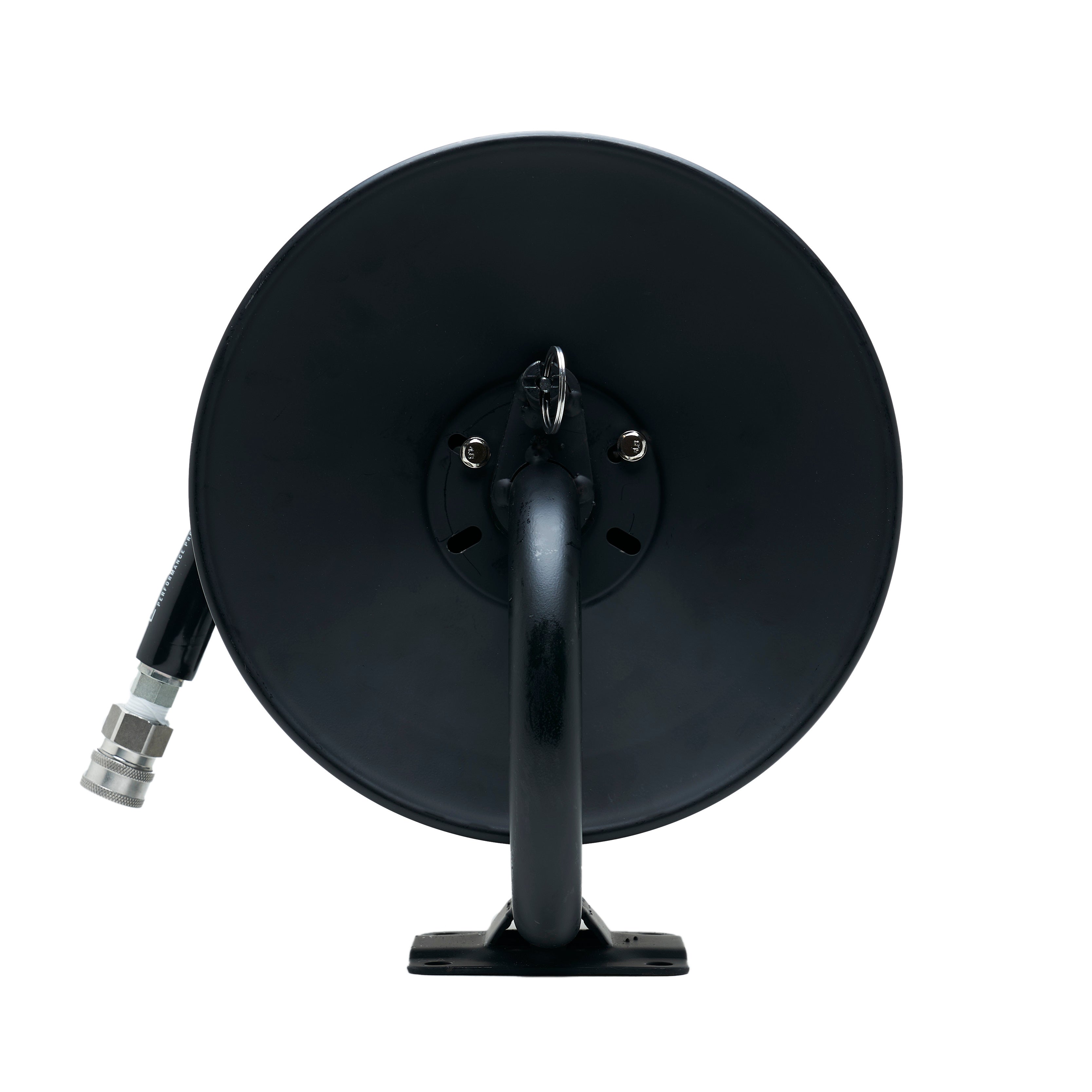

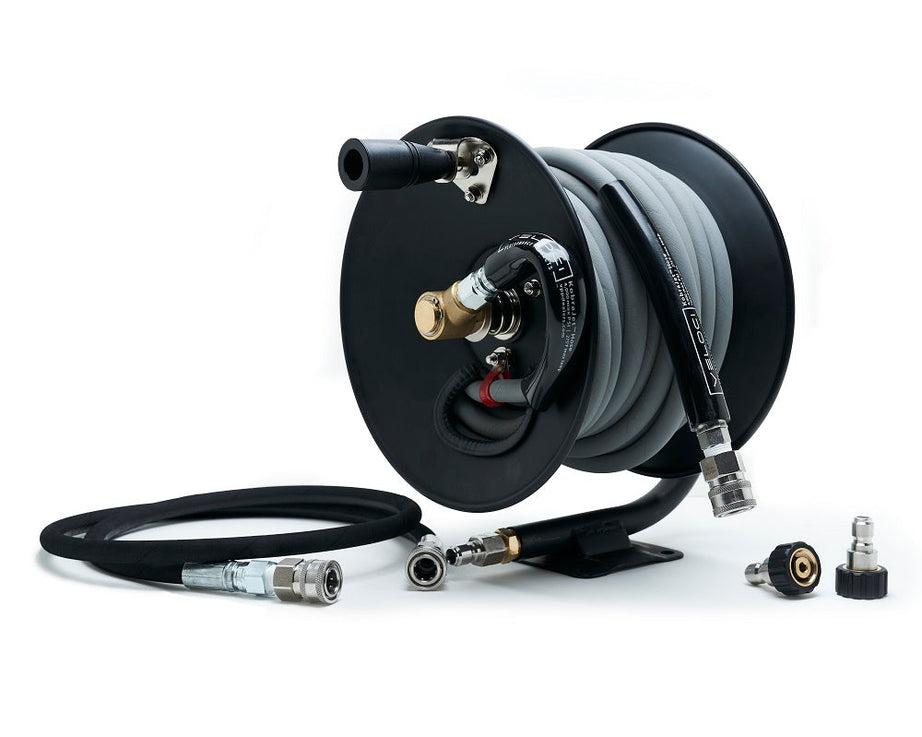

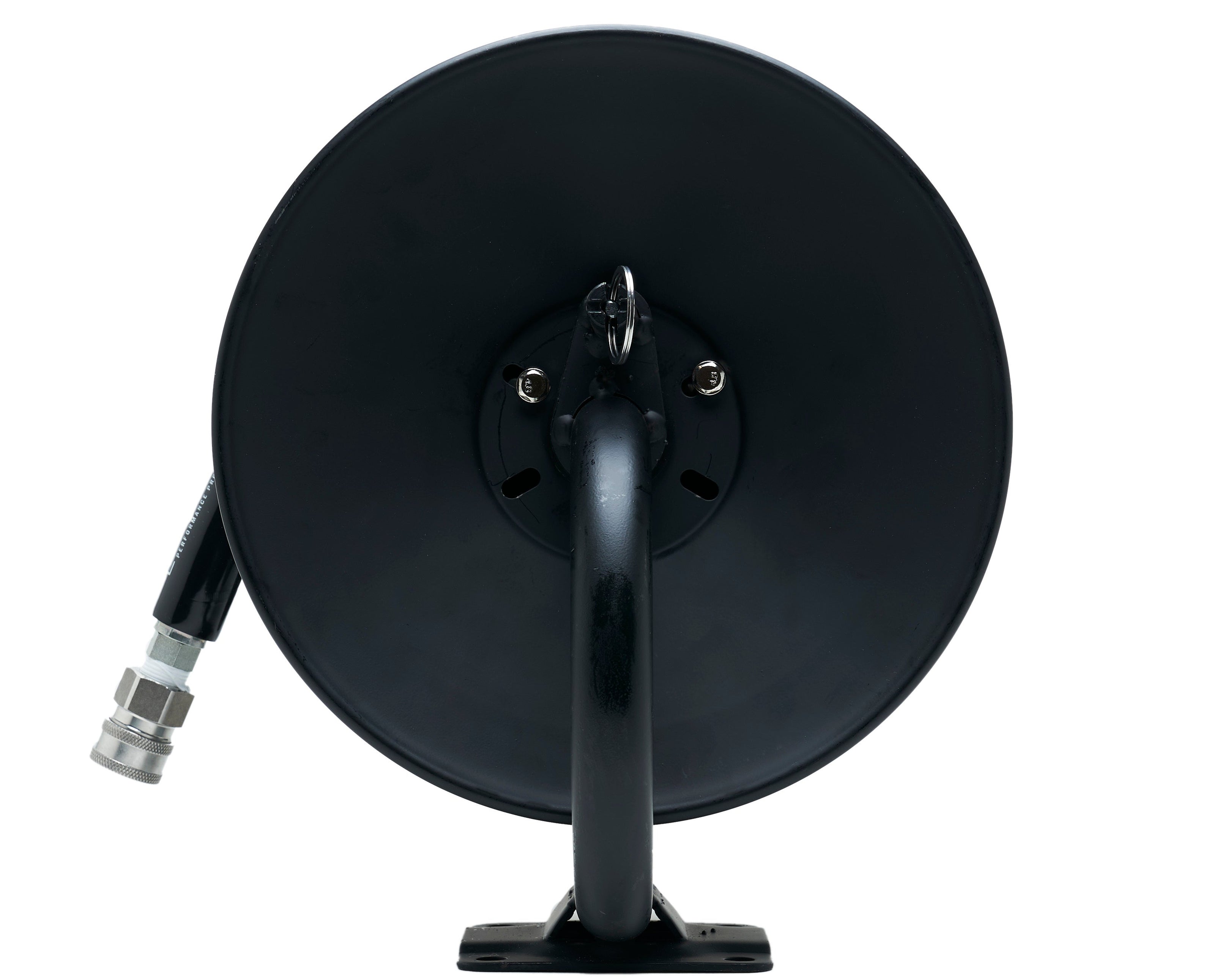

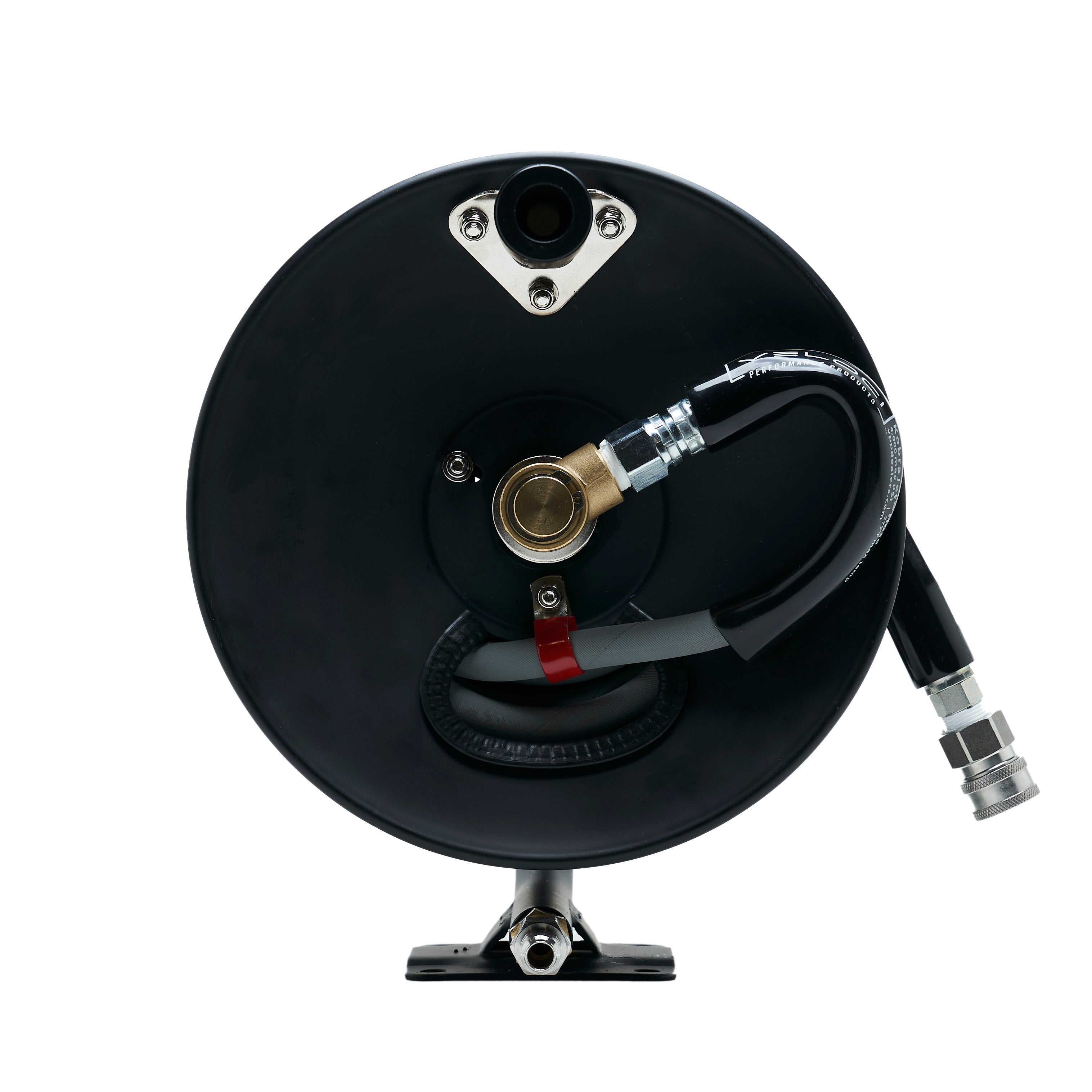

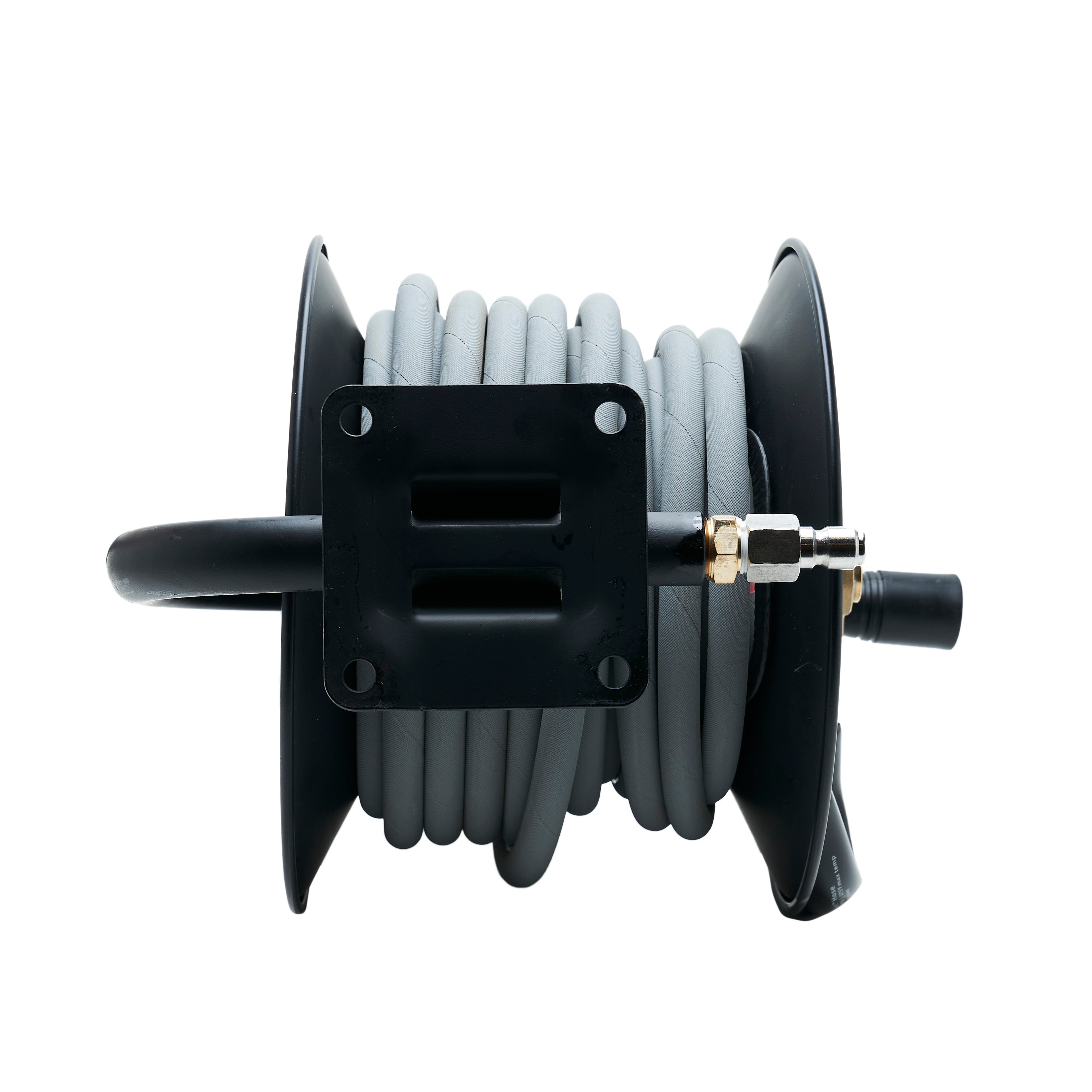

This all-inclusive hose reel kit has everything you need including assembly! The Premium 100' Hose Reel Kit includes a 100' hose reel, a 100' KobraJet grey non-marking hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel fittings, and a high-grade brass swivel that is recognized to outperform other competing models.
*Wall mounting hardware not included.
| Measurement | 50' | 100' | 150' | 200' |
|---|---|---|---|---|
| Height | 12.5" | 12.5" | 16.5" | 16.5" |
| Total Width | 11" | 15" | 15" | 20.5" |
| Depth | 10.5" | 10.5 | 13.5" | 13.5" |
| Wall Width | 7.5" | 12" | 10" | 16" |
| Core Width | 4.375" | 8.75" | 6.375" | 12.5" |
| Core Diameter | 4.25" | 4.25" | 5.5" | 5.5" |
| Inlet | 3/8" Male NPT | 3/8" Male NPT | 3/8" Male NPT- 9" Pigtail | 3/8" Male NPT- 9" Pigtail |
| Base to Center of Core | 7.5" | 7.5" | 10" | 10" |
| Mounting Bracket | 4 holes-square - 3.375" to center | 4 holes-square - 3.375" to center | 4 slots-4.25" W x 3.375" D | 4 slots-4.25" W x 3.375" D |
| Hole Diameter | 0.375" Circle | 0.375" Circle | 0.375" x 2.2" Slot | 0.375" x 2.2" Slot |
| Pin Lock | Yes | Yes | Yes | Yes |
| Mounting Hardware | None | None | None | None |
WARNING
This product can expose you to chemicals, including Ethylene Glycol which is known to the state of California to cause cancer or birth defects, or other reproductive harm, go to www.p65Warnings.ca.gov for more information.
The products we sell are not intended for use in potable water systems and are only for industrial non-drinking water applications.
