100' PREMIUM HOSE REEL BUNDLE-100 NO MARK GREY
SKU# 43.5134This all-inclusive hose reel bundle has everything you need, at a lower price, and simply requires assembly. The Premium 100' Hose Reel Kit includes a 100' hose reel, a 100' KobraJet grey non-marking hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, stainless steel quick connects, and a high-grade brass swivel that is recognized to outperform other competing models.
Specifications
- 100' Hose Reel
- Supports 100' of 3/8" (ID) pressure washing hose
- Mounted Weight of 32lbs.
- 4,000 PSI Max
- 140° Max Temp

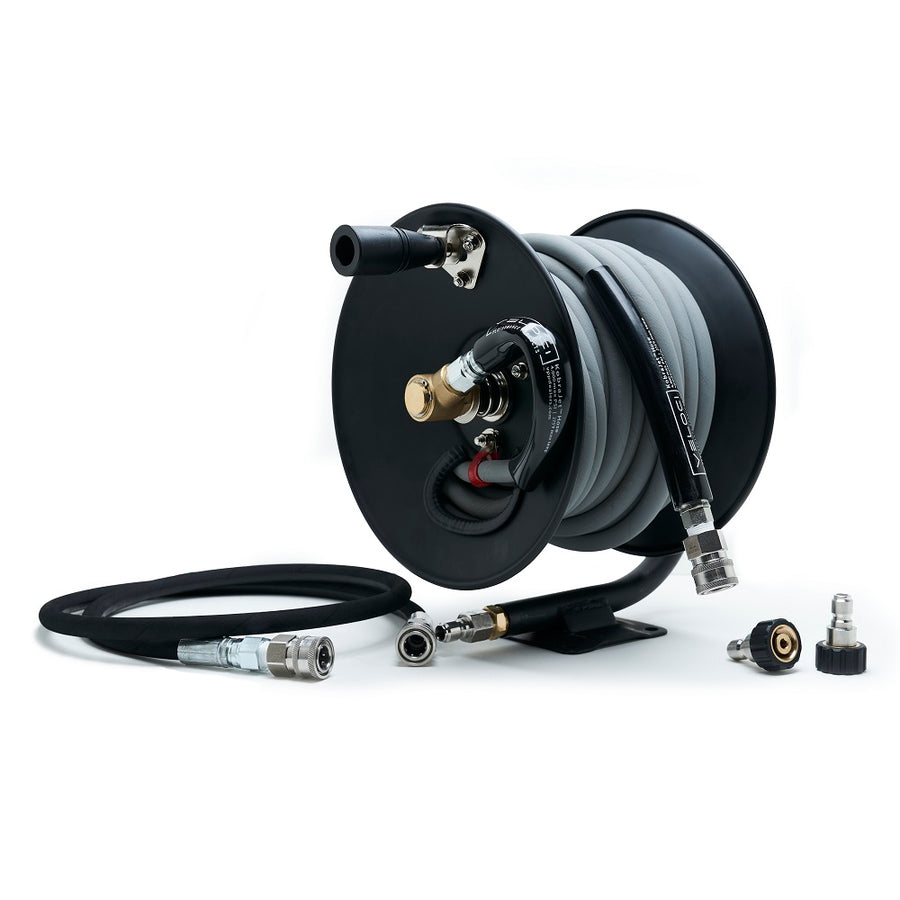

Included
- 100’ Hose Reel
- 100’ KobraJet Grey 3/8” 4,000 PSI Non-Marking Hose
- 5’ Whip Line
- 3 3/8" stainless steel couplers
- 3/8” stainless steel plug
- Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
- Teflon Tape
- Installation and mounting instructions
Reel Dimensions
| Measurement | 50' | 100' | 150' | 200' |
|---|---|---|---|---|
| Height | 12.5" | 12.5" | 16.5" | 16.5" |
| Total Width | 11" | 15" | 15" | 20.5" |
| Depth | 10.5" | 10.5 | 13.5" | 13.5" |
| Wall Width | 7.5" | 12" | 10" | 16" |
| Core Width | 4.375" | 8.75" | 6.375" | 12.5" |
| Core Diameter | 4.25" | 4.25" | 5.5" | 5.5" |
| Inlet | 3/8" Male NPT | 3/8" Male NPT | 3/8" Male NPT- 9" Pigtail | 3/8" Male NPT- 9" Pigtail |
| Base to Center of Core | 7.5" | 7.5" | 10" | 10" |
| Mounting Bracket | 4 holes-square - 3.375" to center | 4 holes-square - 3.375" to center | 4 slots-4.25" W x 3.375" D | 4 slots-4.25" W x 3.375" D |
| Hole Diameter | 0.375" Circle | 0.375" Circle | 0.375" x 2.2" Slot | 0.375" x 2.2" Slot |
| Pin Lock | Yes | Yes | Yes | Yes |
| Mounting Hardware | None | None | None | None |
