50' Premium Hose Reel Kit - 50' Non-Marking Grey
50' Premium Hose Reel Kit - 50' Non-Marking Grey
50' Premium Hose Reel Kit - 50' Non-Marking Grey
50' Premium Hose Reel Kit - 50' Non-Marking Grey
50' Premium Hose Reel Kit - 50' Non-Marking Grey

MTM Hydro Parts - Powered by Veloci Performance Products

50' Premium Hose Reel Kit - 50' Non-Marking Grey

SKU# 43.5032

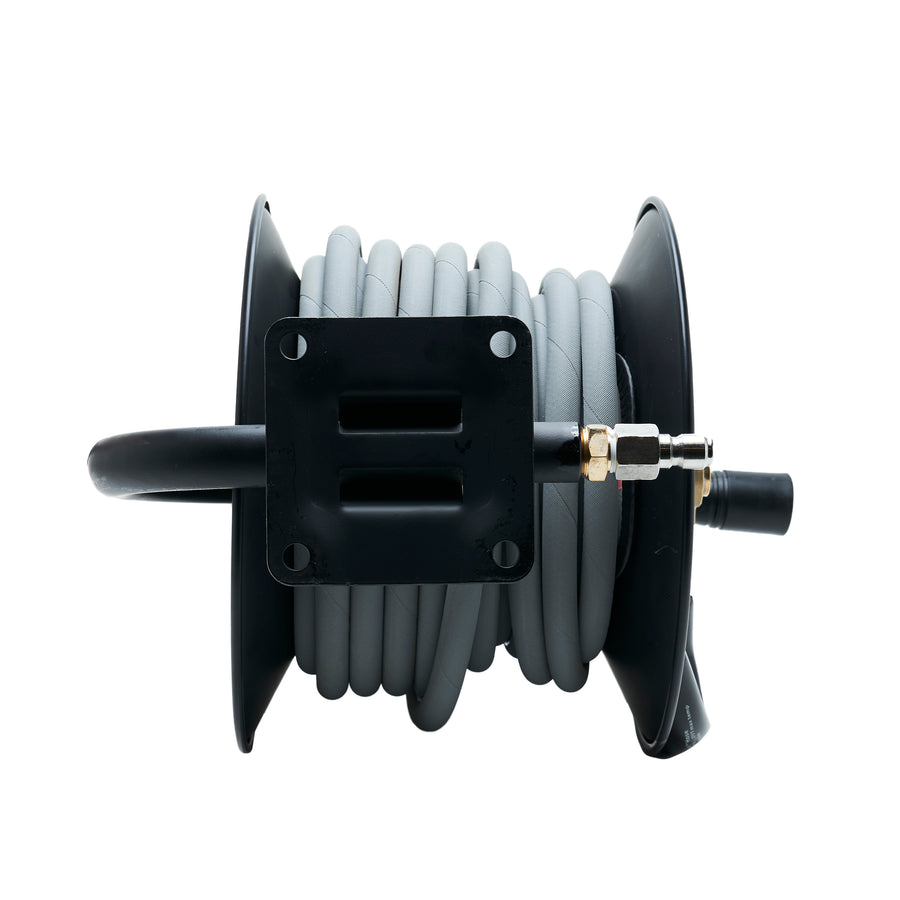

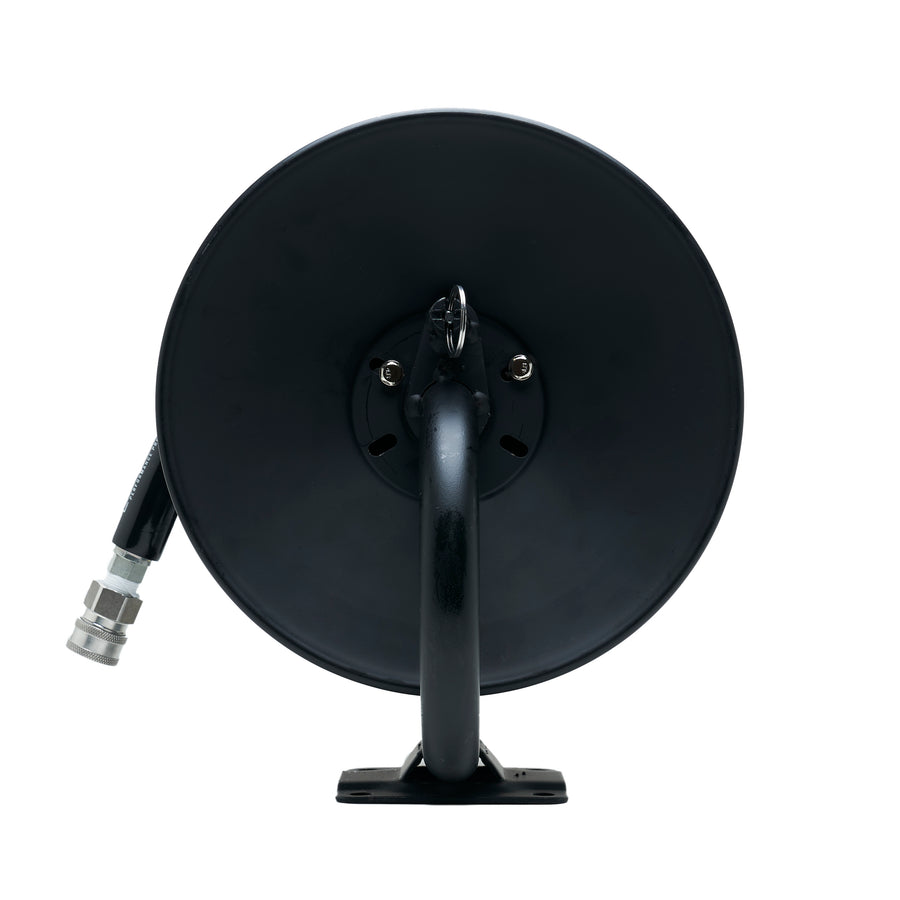

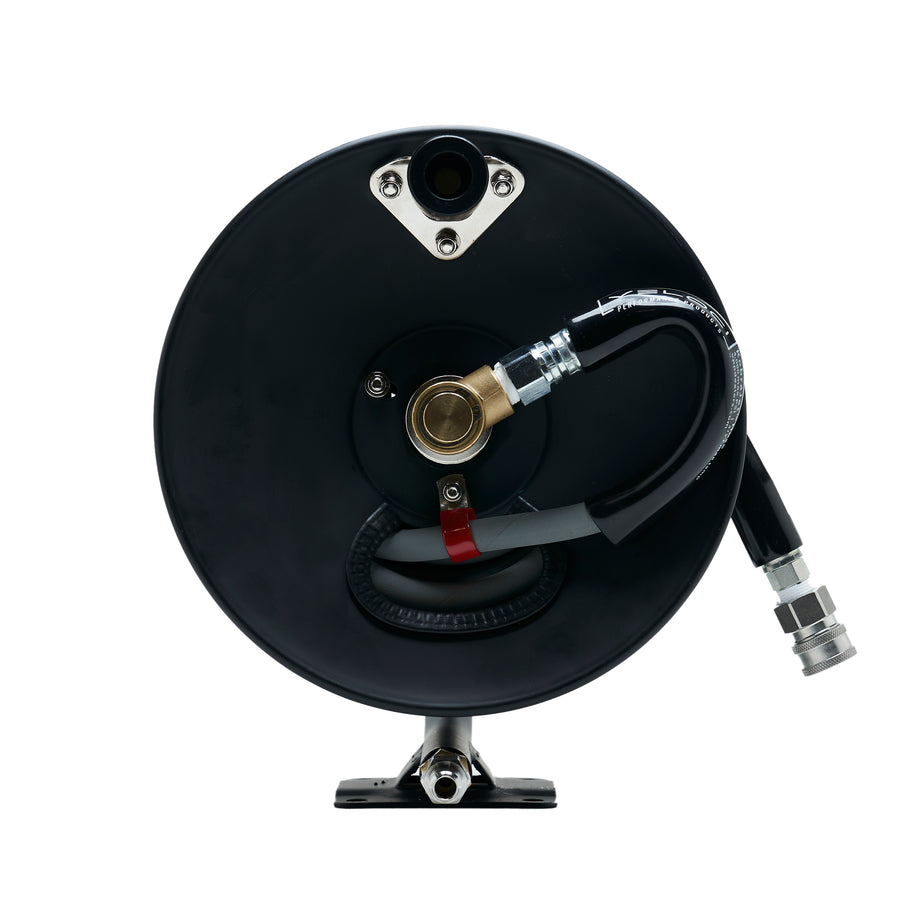

This all-inclusive hose reel kit has everything you need including assembly! The Premium 50' Hose Reel Kit includes a 50' hose reel, a 50' KobraJet grey non-marking hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel fittings, and a high-grade brass swivel that is recognized to outperform other competing models.

*Wall mounting hardware not included.

  • Supports 50’ of 3/8” (ID) Pressure washing hose only
  • Mounted weight is 19 lbs
  • 4,000 PSI max
  • 140° max temp
  • 50’ Hose Reel
  • 50’ KobraJet Grey 3/8” 4,000PSI Non-Marking Hose
  • 6’ Whip Line
  • Pre-installed 3/8” stainless steel couplers on both ends of whip line
  • Pre-installed 3/8” brass plug installed on inlet of hose reel
  • Pre-installed 3/8” stainless steel coupler installed on outlet of hose
  • Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
  • Teflon Tape
  • Installation and mounting instructions

Measurement 50' 100' 150' 200'
Height 12.5" 12.5" 16.5" 16.5"
Total Width 11" 15" 15" 20.5"
Depth 10.5" 10.5 13.5" 13.5"
Wall Width 7.5" 12" 10" 16"
Core Width 4.375" 8.75" 6.375" 12.5"
Core Diameter 4.25" 4.25" 5.5" 5.5"
Inlet 3/8" Male NPT 3/8" Male NPT 3/8" Male NPT- 9" Pigtail 3/8" Male NPT- 9" Pigtail
Base to Center of Core 7.5" 7.5" 10" 10"
Mounting Bracket 4 holes-square - 3.375" to center 4 holes-square - 3.375" to center 4 slots-4.25" W x 3.375" D 4 slots-4.25" W x 3.375" D
Hole Diameter 0.375" Circle 0.375" Circle 0.375" x 2.2" Slot 0.375" x 2.2" Slot
Pin Lock Yes Yes Yes Yes
Mounting Hardware None None None None



WARNING

This product can expose you to chemicals, including Ethylene Glycol which is known to the state of California to cause cancer or birth defects, or other reproductive harm, go to www.p65Warnings.ca.gov for more information.

The products we sell are not intended for use in potable water systems and are only for industrial non-drinking water applications.

Description

This all-inclusive hose reel kit has everything you need including assembly! The Premium 50' Hose Reel Kit includes a 50' hose reel, a 50' KobraJet grey non-marking hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel fittings, and a high-grade brass swivel that is recognized to outperform other competing models.

*Wall mounting hardware not included.

Specs

  • Supports 50’ of 3/8” (ID) Pressure washing hose only
  • Mounted weight is 19 lbs
  • 4,000 PSI max
  • 140° max temp

Included

  • 50’ Hose Reel
  • 50’ KobraJet Grey 3/8” 4,000PSI Non-Marking Hose
  • 6’ Whip Line
  • Pre-installed 3/8” stainless steel couplers on both ends of whip line
  • Pre-installed 3/8” brass plug installed on inlet of hose reel
  • Pre-installed 3/8” stainless steel coupler installed on outlet of hose
  • Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
  • Teflon Tape
  • Installation and mounting instructions

Dims

Measurement 50' 100' 150' 200'
Height 12.5" 12.5" 16.5" 16.5"
Total Width 11" 15" 15" 20.5"
Depth 10.5" 10.5 13.5" 13.5"
Wall Width 7.5" 12" 10" 16"
Core Width 4.375" 8.75" 6.375" 12.5"
Core Diameter 4.25" 4.25" 5.5" 5.5"
Inlet 3/8" Male NPT 3/8" Male NPT 3/8" Male NPT- 9" Pigtail 3/8" Male NPT- 9" Pigtail
Base to Center of Core 7.5" 7.5" 10" 10"
Mounting Bracket 4 holes-square - 3.375" to center 4 holes-square - 3.375" to center 4 slots-4.25" W x 3.375" D 4 slots-4.25" W x 3.375" D
Hole Diameter 0.375" Circle 0.375" Circle 0.375" x 2.2" Slot 0.375" x 2.2" Slot
Pin Lock Yes Yes Yes Yes
Mounting Hardware None None None None



PROP 65

WARNING

This product can expose you to chemicals, including Ethylene Glycol which is known to the state of California to cause cancer or birth defects, or other reproductive harm, go to www.p65Warnings.ca.gov for more information.

The products we sell are not intended for use in potable water systems and are only for industrial non-drinking water applications.
