Description

Fixed Chemical injectors were developed for use in a downstream chemical injection system. Downstream refers to 'after the pump and unloader' where the injector operates through the use of the Venturi effect. When the low-pressure side of a dual lance is opened, the chemical injector's orifice is, then, the point of restriction which immediately creates a vacuum and begins drawing chemical. All chem injectors have a maximum chemical draw of 20% of the flow through the injector, although with various points of restriction through an average system, actual flow is estimated at 12%-18%.

Size your Chem Injector by the GPM restriction and be sure to note whether you are looking for a specific version. Standard Chemical Injectors are fixed which means they are not adjustable to increase or decrease the flow of chemical and have a Stainless Ball, Seat, and Spring for corrosion resistance. Acid Chem Injectors look the same although they boast an enhanced corrosion resistance due to the inclusion of a Ceramic ball and Inconel Stainless Steel seat. If you are looking for an adjustable chem injector, this will allow you to change your flow of chemical into your high-pressure line from 20% to as low as 3%.

*Pair with a soap nozzle - 1/4" Threaded Brass nozzle #17.0024 or a QC nozzle in a 5 pack (included in 5 packs only)

Specifications

3/8" Male NPT Inlet x 3/8" Male NPT Outlet
Max - 300° F
Max - 3,600 PSI
Max - 3.3 to 6.5 GPM

PROP 65

WARNING

This product can expose you to chemicals, including Lead which is known to the state of California to cause cancer or birth defects or other reproductive harm, go to www.p65Warnings.ca.gov for more information.

The products we sell are not intended for use in potable water systems and are only for industrial non-drinking water applications.

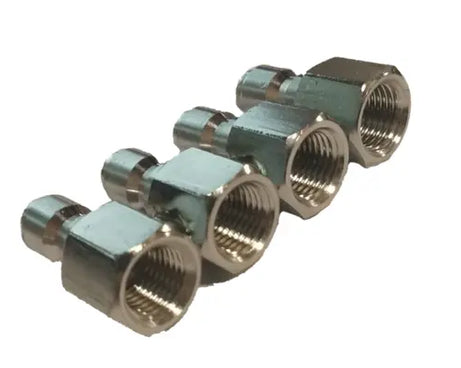

JROD Nozzle Holder
