Innovation Means A More Durable Heater

Diesel indirect-fired portable heaters with embedded burner with combustion air obtained from the main ventilation fan. The Blaze heaters feature a heat exchanger that contains the flame and expels fumes throughout a chimney connected to the outside. Being indirect-fired, they can be operated indoors and can also be ducted.

Four Pass Heat Exchanger Technology The new four pass heat exchanger technology allows exhaust gases to increase heat exchange with the cooling air and obtain maximum thermal efficiency. Our heaters are the most efficient in the industry.

FEATURES:

› CSA Approved

› Low Noise Level

› Clean Combustion with 99.9% Efficiency

› Takes Diesel 1, Diesel 2, Kerosene, or Jet Fuel

› Ideal Applications: Agriculture, Construction, Pest Control, and Water Damage Restoration

Watch the short video below to learn more.

COMPARE THE SPECIFICATIONS OF THE BLAZE LINE
	BLAZE 100	BLAZE 200	BLAZE 300
Heat Input (BTU/h)	112,141	204,873	293,982
Heat Output (BTU/h)	94,759	183,362	258,704
Fuel Consumption (gal/h)	0.81	1.48	2.17
Heated Airflow (cfm)	1,020	1,530	2,530
Temp Rise (@64 F)	95	136	126
Power Supply (v, ph, hz)	120,1,60	120,1,60	120,1,60
Fan Motor Power (hp rpm)	1/4 (3,300)	5/8 (3,300)	1 (1,700)
Current Rating (amps)	4.05	7.65	11.80
Max Duct Length 1-Way	25	50	75
Max Duct Length 2-Way	-	25	35
Flue Size (in)	6	6	6
Tank Capacity (gal)	11	17.2	27.7
Run Time (hours)	14	14	13
Weight (lbs.)	120	207	275
Machine Dimensions (in.)	50 L x 20 x 31	57 L x 22 x 37	69 L x 28 x 42
Shipping Dimensions (in.)	46 L x 20 x 29	52 L x 21 x 38	67 L x 25 x 42

For more details download the Service Manual.

OPTIONAL ACCESSORIES	Part Number
Blaze 200 & 300 Fuel Level Gauge	48.7105
Fuel Tank Filter	48.7106
Blaze 100 12” One Way Duct Adapter	48.7109
Blaze 200 14” One Way Duct Adapter	48.7110
Blaze 300 16” One Way Duct Adapter	48.7111
Blaze 200 12” Two Way Duct Adapter	48.7112
Blaze 300 12” Two Way Duct Adapter	48.7113
THERMOSTAT w/20’ CABLE 20F-120F	48.7114
12” x 20’ Flexible Air Duct	48.7118
14” x 20’ Flexible Air Duct	48.7119
16” x 20’ Flexible Air Duct	48.7120

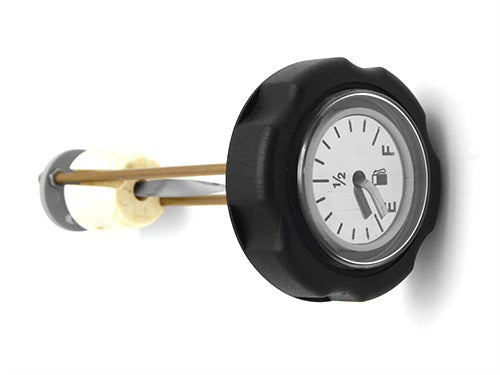

Blaze 100 Fuel Level Gauge	48.7174
