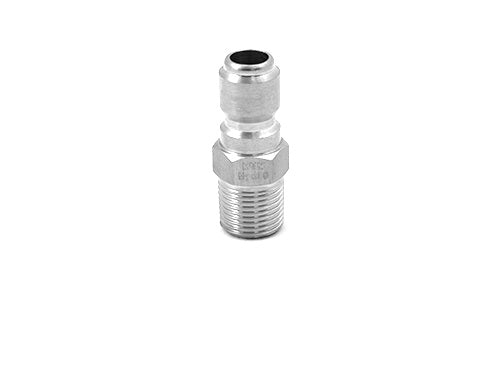

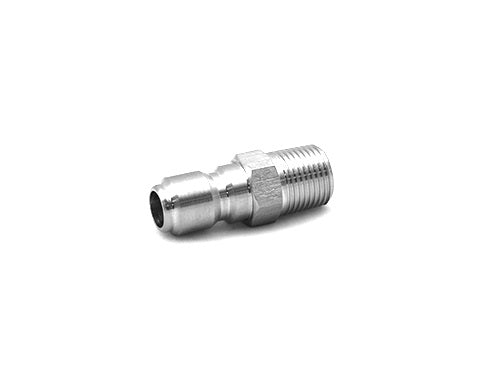

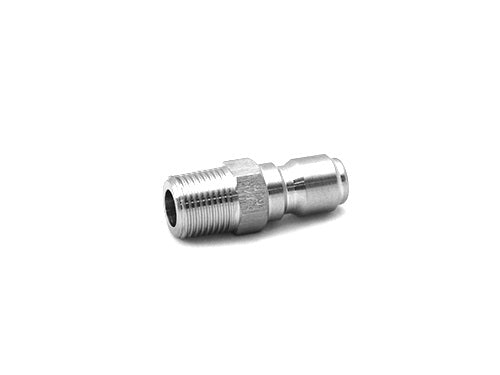

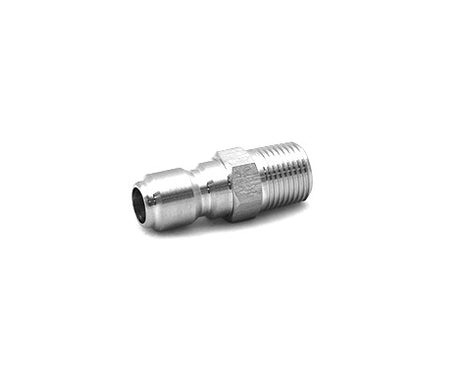

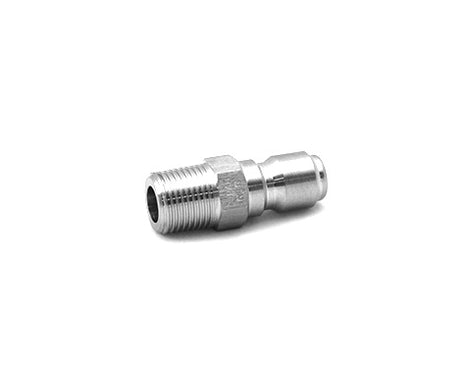

PLATED STEEL QC PLUG 3/8MPT
PLATED STEEL QC PLUG 3/8MPT
PLATED STEEL QC PLUG 3/8MPT

PLATED STEEL QC PLUG 3/8MPT

SKU# 24.0076

Plated Steel Plugs offer a a fast and economical QC system for your high pressure joints. As a rule of thumb, 1/4" fittings are normally found at the end of the pressure washing system on the spray wand or outlet of the spray gun. When purchasing Plugs and couplers the Male model has exposed threads while the Female version has threads on the interior of the fitting. See image for reference.

All Steel Plugs are National Pipe Thread (NPT) which means they have a tapered Male or Female thread (depending upon the model). NPT is mainly used in the Western Hemisphere and was developed on the concept of interference by the third thread. When installing NPT fittings to another NPT thread we recommend that you use 4-5 wraps of Teflon tape wound clockwise, or 2-3 drops of Loctite thread sealant.

British Standard Pipe Thread (BSP) is found in the European market and has a different thread pitch than NPT. BSP is also considered a 'straight thread' which means it has no taper at the end. When installing NPT on BSP or vice versa, use 6-7 wraps of Teflon or 2-3 drops of Loctite and tighten accordingly. When tightening opposing thread styles (BSP and NPT) you will experience more interference sooner and you will not be able to tighten the fitting as far as like-threads. You will still have a tight seal, just make sure to use the recommended amount of Teflon Tape or Loctite.



1/4" Max PSI 5,000

  • 24.0073 FPT
  • 24.0074 MPT

3/8" Max PSI 4,200

  • 24.0075 FPT
  • 24.0076 MPT

1/2" Max PSI 3,600

  • 24.0077 FPT
  • 24.0078MPT



WARNING

This product can expose you to chemicals, including Lead which is known to the state of California to cause cancer or birth defects or other reproductive harm, go to www.p65Warnings.ca.gov for more information.

The products we sell are not intended for use in potable water systems and are only for industrial non-drinking water applications.

Description

Plated Steel Plugs offer a a fast and economical QC system for your high pressure joints. As a rule of thumb, 1/4" fittings are normally found at the end of the pressure washing system on the spray wand or outlet of the spray gun. When purchasing Plugs and couplers the Male model has exposed threads while the Female version has threads on the interior of the fitting. See image for reference.

All Steel Plugs are National Pipe Thread (NPT) which means they have a tapered Male or Female thread (depending upon the model). NPT is mainly used in the Western Hemisphere and was developed on the concept of interference by the third thread. When installing NPT fittings to another NPT thread we recommend that you use 4-5 wraps of Teflon tape wound clockwise, or 2-3 drops of Loctite thread sealant.

British Standard Pipe Thread (BSP) is found in the European market and has a different thread pitch than NPT. BSP is also considered a 'straight thread' which means it has no taper at the end. When installing NPT on BSP or vice versa, use 6-7 wraps of Teflon or 2-3 drops of Loctite and tighten accordingly. When tightening opposing thread styles (BSP and NPT) you will experience more interference sooner and you will not be able to tighten the fitting as far as like-threads. You will still have a tight seal, just make sure to use the recommended amount of Teflon Tape or Loctite.



Specifications

1/4" Max PSI 5,000

  • 24.0073 FPT
  • 24.0074 MPT

3/8" Max PSI 4,200

  • 24.0075 FPT
  • 24.0076 MPT

1/2" Max PSI 3,600

  • 24.0077 FPT
  • 24.0078MPT



PROP 65

WARNING

This product can expose you to chemicals, including Lead which is known to the state of California to cause cancer or birth defects or other reproductive harm, go to www.p65Warnings.ca.gov for more information.

The products we sell are not intended for use in potable water systems and are only for industrial non-drinking water applications.
