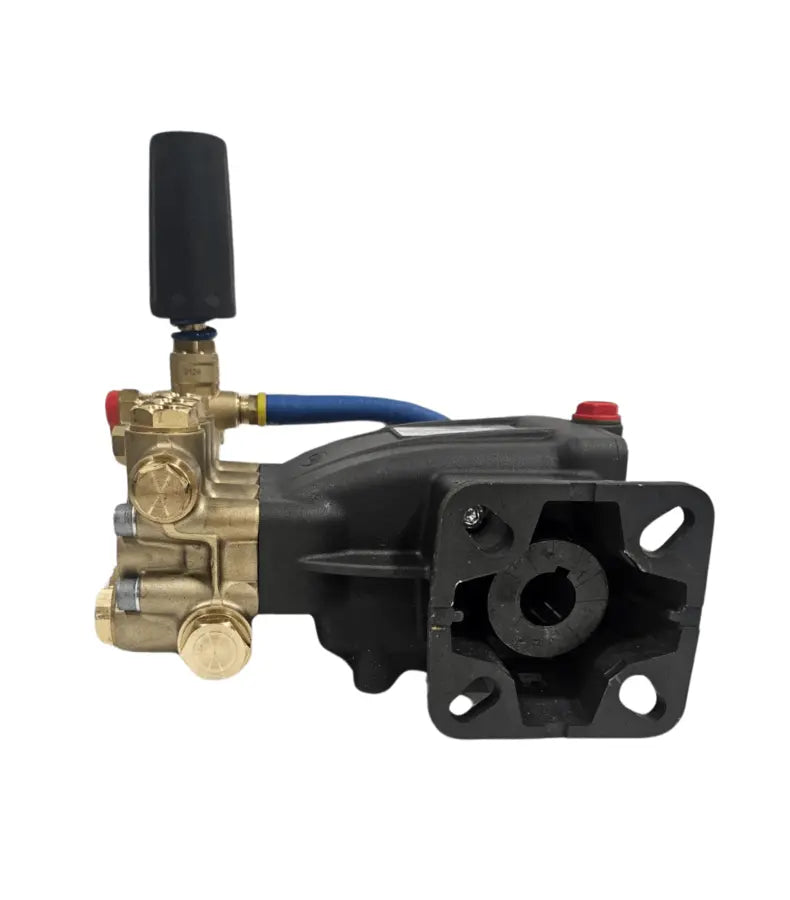

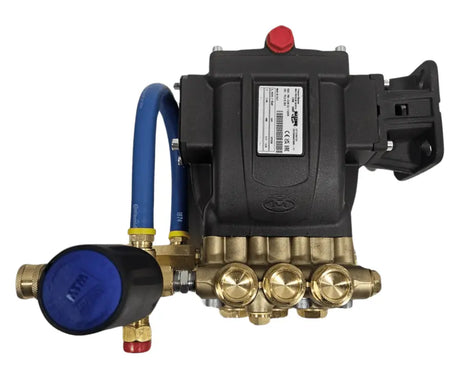

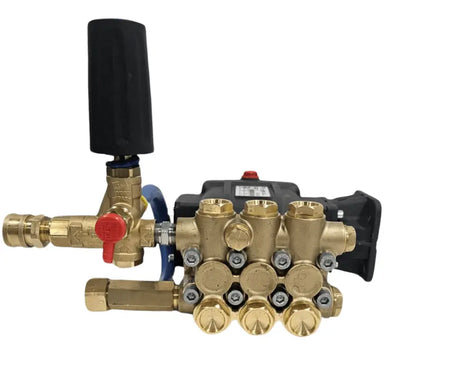

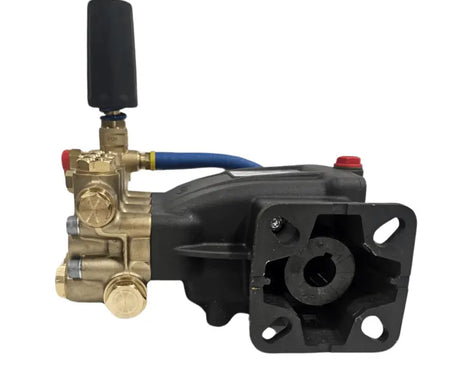

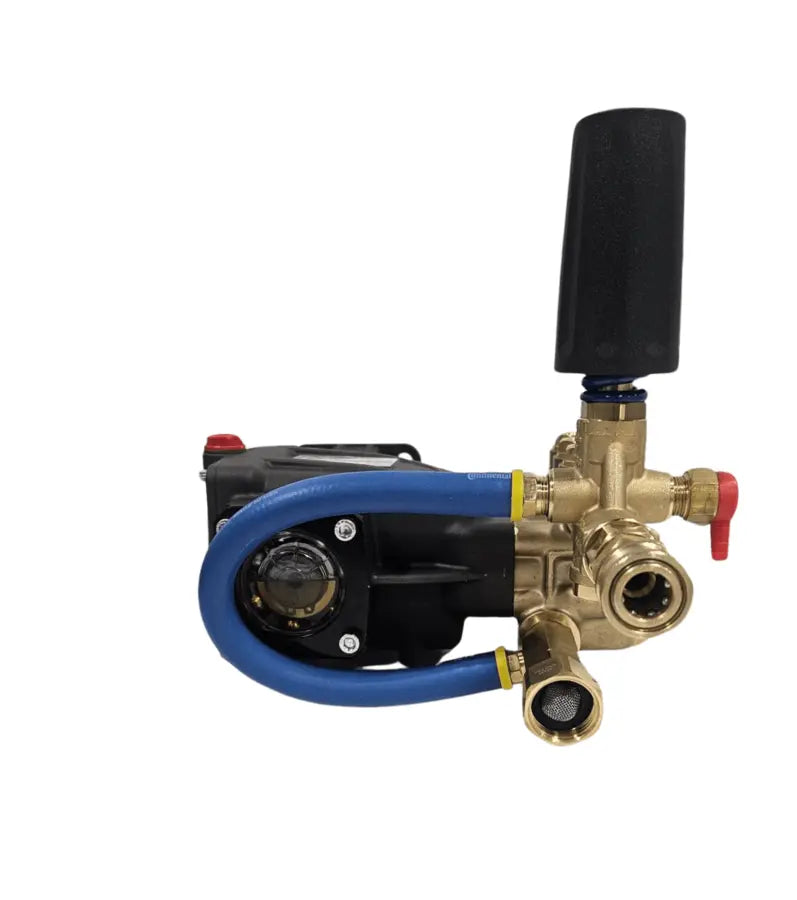

PMR KIT PM-EDM-E3 /3000 PSI/BRV31 EZ START
PMR KIT PM-EDM-E3 /3000 PSI/BRV31 EZ START
PMR KIT PM-EDM-E3 /3000 PSI/BRV31 EZ START
PMR KIT PM-EDM-E3 /3000 PSI/BRV31 EZ START

PMR KIT PM-EDM-E3 /3000 PSI/BRV31 EZ START

$601.98

SKU: 43.1008

Availability: Hurry, only 5 items left in stock!
Description
PUMP MODEL GPM PSI RPM HP BORE STROKE SHAFT
PM11200R-EDM-E3 2.90 2900 3400 5.71  14 mm/0.551 in 8.2 mm/0.322 in Right



Unloader Specifications:

  • Bypass - Two available 3/8" NPT Female ports
  • Inlet - Two available 3/8" NPT Female
  • Outlet - 3/8" NPT Female
  • Mounting port - 3/8" NPT Female bottom mounting port available
  • Easy Start Version
  • Shaft made of stainless steel for greater resistance to rusting and greater resistance to the torsional forces leading to longer life
  • Main spring is guided through a thick spacer instead of a cheap washer
  • Initial spike pressure is 30%, which is approximately a 23% reduced spike pressure compared to competitors.
  • Max - 3,200 PSI
  • Max - 12 GPM
  • Max - 194°F temp rating
  • Fits Pumps with 1/2" inlet and 3/8" outlet
