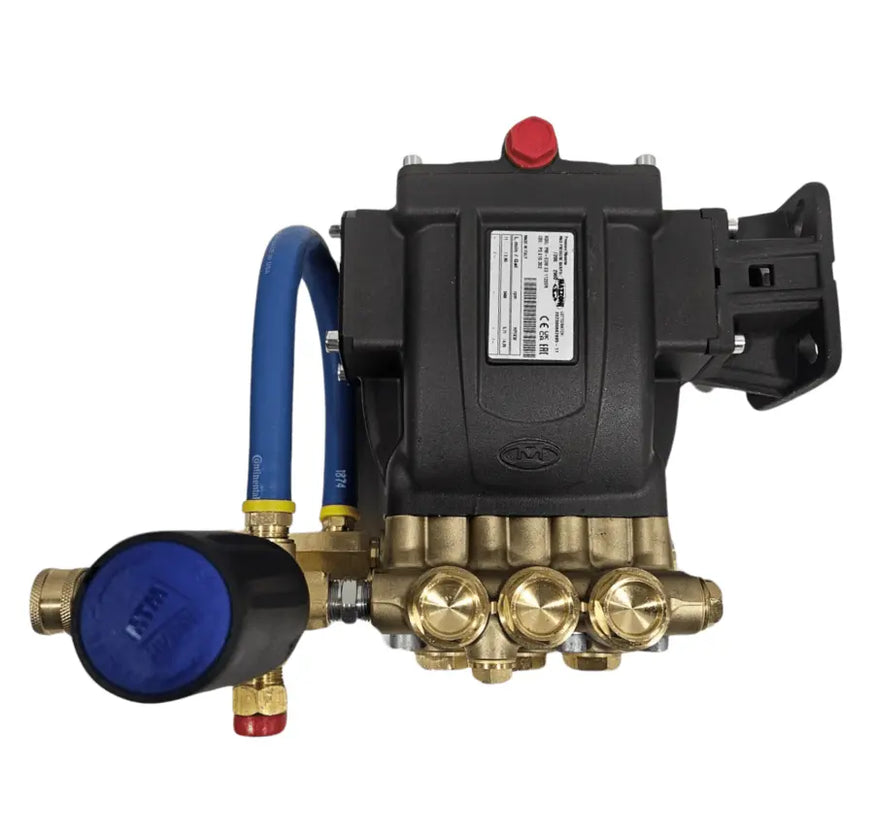

PMR KIT PM-EDM-E3 /3000 PSI/BRV31 EZ STARTPMR KIT PM-EDM-E3 /3000 PSI/BRV31 EZ START

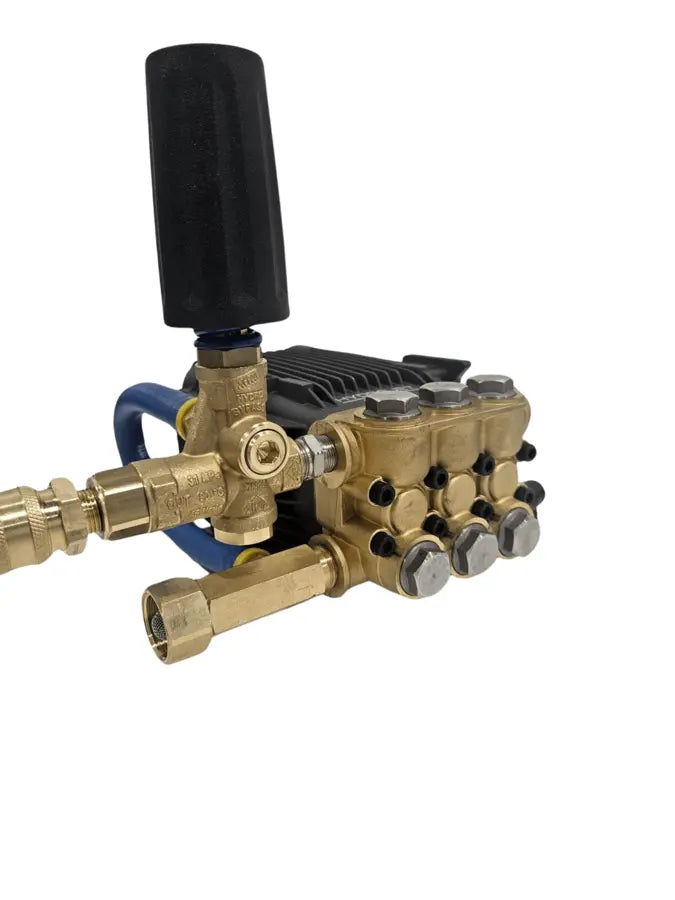

PMR KIT HJ3025-3/4 - 3.0 GPM/2500 PSI/BRV31 EZ STARTPMR KIT HJ3025-3/4 - 3.0 GPM/2500 PSI/BRV31 EZ START
Next

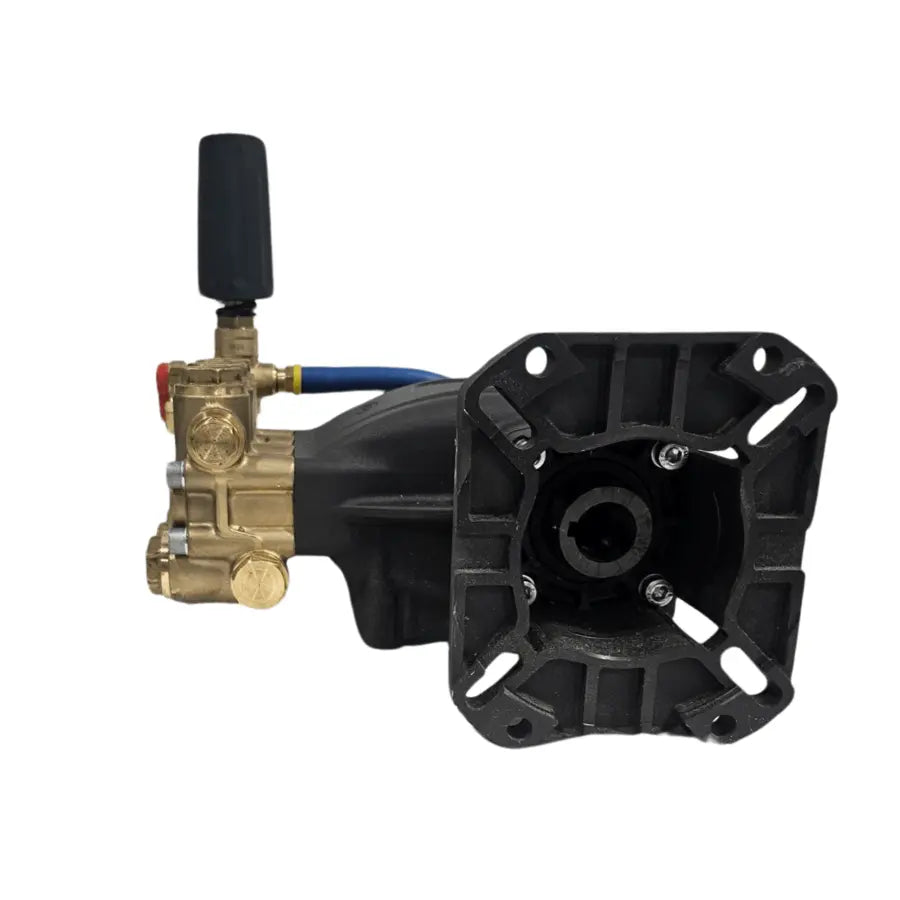

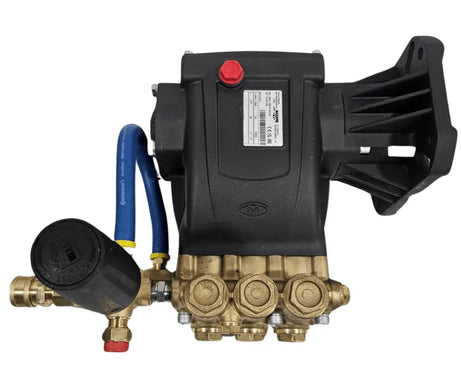

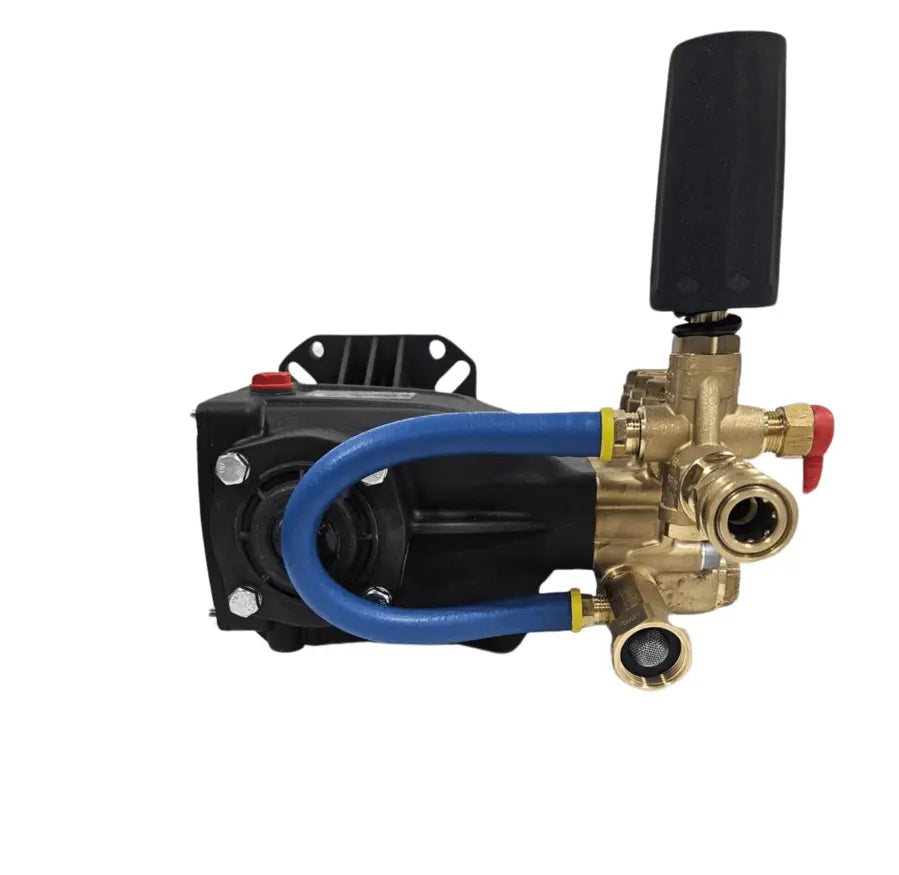

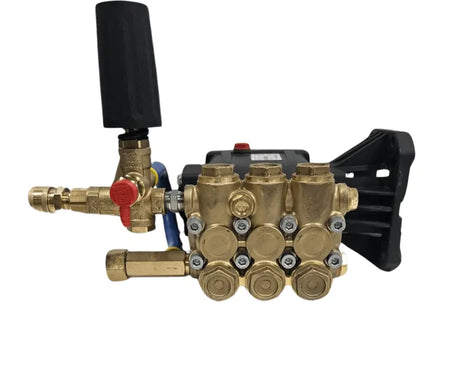

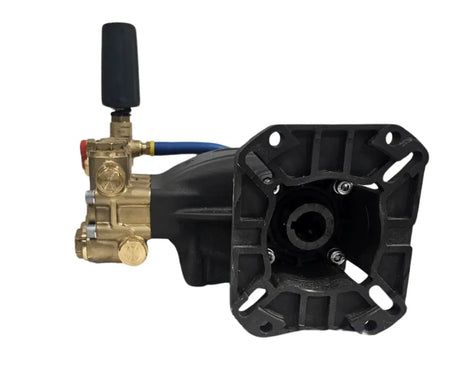

PMR KIT PUMP MMD EDM E4/4000 PSI/BRV31 EZ START
PMR KIT PUMP MMD EDM E4/4000 PSI/BRV31 EZ START
PMR KIT PUMP MMD EDM E4/4000 PSI/BRV31 EZ START
PMR KIT PUMP MMD EDM E4/4000 PSI/BRV31 EZ START

PMR KIT PUMP MMD EDM E4/4000 PSI/BRV31 EZ START

$754.82

SKU: 43.1007

Availability: Hurry, only 5 items left in stock!
Description
PUMP MODEL GPM PSI RPM HP BORE STROKE SHAFT
MMD16275R-EDM-E4 4.22 4000 3400 11.4 15 mm/0.590 in 9.7 mm/0.381 in Right



Unloader Specifications:

  • Bypass - Two available 3/8" NPT Female ports
  • Inlet - Two available 3/8" NPT Female
  • Outlet - 3/8" NPT Female
  • Mounting port - 3/8" NPT Female bottom mounting port available
  • Easy Start Version
  • Shaft made of stainless steel for greater resistance to rusting and greater resistance to the torsional forces leading to longer life
  • Main spring is guided through a thick spacer instead of a cheap washer
  • Initial spike pressure is 30%, which is approximately a 23% reduced spike pressure compared to competitors.
  • Max - 4,000 PSI
  • Max - 12 GPM
  • Max - 194°F temp rating
  • Fits Pumps with 1/2" inlet and 3/8" outlet
